Capstone-Retail-Analytics

Optimizing Retail Decisions through Customer Segmentation and Predictive Sales Modeling

Author: Juan Diego Benavides
Purpose: Educational capstone demonstrating an end-to-end data-driven retail analytics pipeline and communicating findings to non-technical stakeholders.

Executive Summary
Introduction
Methods
Results
Conclusion
- Authorship & data credits

Executive Summary

Executive questions
1) What are the key sales patterns?
2) Which customer segments drive revenue?
3) How can short-term sales be forecast to inform inventory decisions?

Deliverables

One coherent flow: Cleaning → EDA → Segmentation (RFM + K-Means) → Forecasting (Random Forest).
An interactive Tableau dashboard with an Executive view (KPIs, segments, 90-day trend & 14-day forecast) and an EDA Explorer (filters by Segment, Month-of-year, Weekday).
This README as Executive Report, aligned with the capstone rubric.

Headline results

Customer concentration: ~55.9% of customers explain 80% of revenue → segmentation is warranted.
High-Value segment: ~49% of customers contribute ~74% of revenue → retention and stockout prevention should be prioritized.
Forecast uplift: Random Forest improves over a seasonal naïve baseline (≈15% CV uplift; ~34% on a 14-day holdout) with calibrated 80% prediction-interval coverage.

Note: The dataset is synthetic but realistic. The focus is on methodology, reproducibility, and clear communication.

Introduction

Retailers often rely on intuition for pricing, inventory management, and promotions. With multi-table transactional data, guesswork can be replaced by descriptive analytics, customer segmentation, and predictive modeling to reduce stockouts/overstocks and target campaigns more effectively.

Why this approach

The data captures who buys what, where, and when, enabling both customer-level and time-series analysis.
RFM-based segmentation is straightforward for CRM teams to act on.
Tree-based forecasting (Random Forest) offers robust short-term predictions without strict statistical assumptions.
Tableau translates the analysis into an interactive product for executives.

How the story unfolds
The pipeline first ensures trustworthy data (types, joins, integrity), then explores sales patterns (KPIs, seasonality, category mix), applies RFM + K-Means to segment customers, and builds a short-term sales forecast to support inventory planning. The results are published in an Executive dashboard for stakeholder exploration.

Methods

This section covers data sources, cleaning, features, models, validation, and reproducibility.

Data sources (≥2 sources, ≥1,000 rows, ≥5 columns — met)

Primary: Grocery Sales multi-table CSVs — sales, products, customers, employees, cities, countries (Kaggle: Grocery Sales Dataset — andrexibiza).
Dimensional joins: Product category/class attributes; city ↔ country mappings (customers & employees).
Derived (educational): products_with_category_v7_clean.csv — curated by joining the original products and categories tables and standardizing labels (merging synonyms, fixing typos, consolidating classes). It improves category granularity but may contain classification errors, so it should be treated as a best-effort educational artifact.

NB01 snapshot (row counts & range)

sales: 6,758,125 customers: 98,759 products: 452
employees: 23 cities: 96 countries: 206
Sales date range: 2018-01-01 00:00:04.070000 → 2018-05-09 23:59:59.400000

Data cleaning & integration (NB01)

Standardized types (dates, numeric, categorical) and normalized text.
De-duplicated keys; harmonized product attributes.
Foreign-key validation across sales→customers/products/employees and geography chains (customers/employees→cities→countries) — 0 missing keys.
Recomputed UnitNetPrice & TotalPrice from products × (1 − Discount) × Quantity.
Built a daily sales calendar (with missing-day flags).
Produced clean artifacts under clean/ (Parquet) and audits under clean/report/.

Repository note — full vs mini feed
NB01 materializes the full history as sales_enriched.csv. Because that file is too large for GitHub, the repo ships a size-capped sales_enriched_mini.csv.

All KPIs and visuals in this README were computed on the full sales_enriched.csv. If only the mini feed is used, minor discrepancies may appear. To reproduce exact figures, run NB01 locally to regenerate the full file.

Feature engineering (NB03)

Transaction definition: one order per SalesID. RFM window: 2018-01-01 → 2018-05-09, anchor t₀ = max(valid SalesDate).
RFM: recency_days, frequency, monetary.
Extra customer features: avg_ticket, pct_discounted, n_categories. Geography modes (top_city, top_country) are reporting-only.
Scaling & reproducibility: MinMax scaling to [0,1] with 0-imputation (random_state=42); scaler parameters persisted.
Time-series policy: rows with missing SalesDate are excluded from time series but included in global KPIs.

Customer clustering (NB04)

K-Means fitted on two variants (from NB03):

RFM3: recency_days, frequency, monetary
FULL: RFM3 + avg_ticket, pct_discounted, n_categories

K selection 1) Scan K∈[2..10] with Silhouette, Davies–Bouldin, Calinski–Harabasz, and Elbow.
2) Confirm on full data with high n_init around the best K.
3) Bootstrap stability (30 runs, 80% subsamples): agreement/ARI/NMI.
Labeling: the High-Value cluster maximizes frequency + monetary − recency. A binary label hv01 (0=High-Value, 1=Mid/Low) was also published.

Forecasting (NB05)

Target: daily TotalRevenue. Champion: RandomForestRegressor.
Features (forward-only): calendar, DOW one-hot, lags/rollings, weekly Fourier terms (no leakage).
Validation: time-aware CV (blocked/rolling) + 14-day holdout.
Metrics: RMSE, MAE, R² for CV; RMSE/MAE/MAPE/WAPE/R² for holdout. Prediction intervals calibrated to 80% coverage.

Reproducibility

Random seed fixed (42).
Clean outputs in clean/*.parquet; model artifacts in clean/forecast/*.
README sections updated idempotently from notebooks.

Data provenance & credits

Dataset: Grocery Sales Dataset by andrexibiza (Kaggle): https://www.kaggle.com/datasets/andrexibiza/grocery-sales-dataset/data
Re-used/extended for educational purposes only.

Results

Data lineage. EDA visuals were computed on full history from sales_enriched.csv.
The trend & forecast use clean/tableau_feeds/ts_forecast_feed_long.csv and are the only visuals affected by the Window Days parameter (30/60/90; default 90).
Repo note: The repository includes sales_enriched_mini.csv due to size constraints; slight numeric differences may occur if only the mini feed is used.

1) Exploratory Data Analysis (NB02)

Core KPIs (full history)

Metric	Mean	Median	P90
ATV (Average Transaction Value)	641.07	490.77	1,472.30
UPT (Units per Transaction)	13.00	13.00	23.00

_{Source: sales_enriched.csv (joined with customers_segments_tableau.csv for segment filters).}

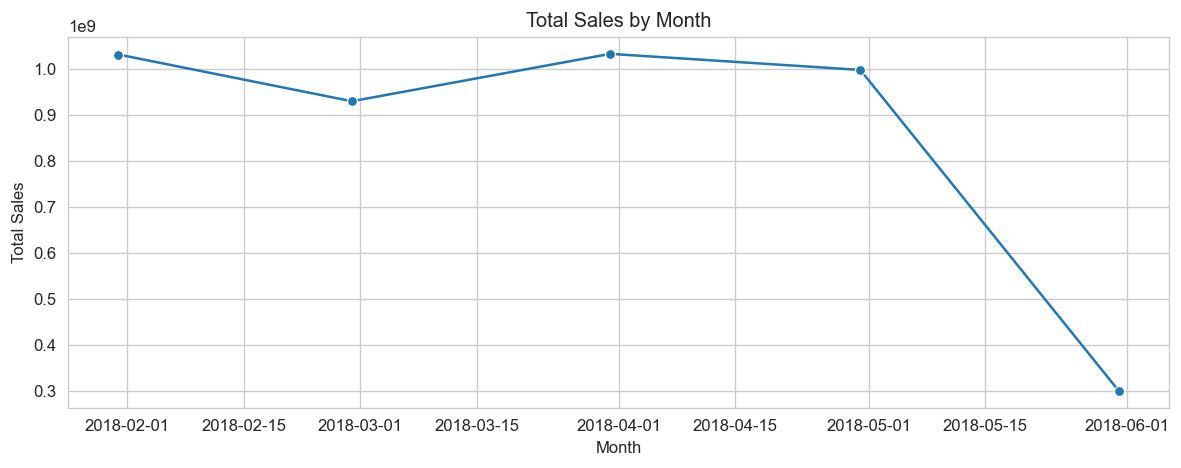

Monthly Sales Trend (illustrative)

Monthly total sales — *Rows with missing `SalesDate` are excluded from the time series (≈1.0%), but they remain in global KPIs. Source: `sales_enriched.csv`.*

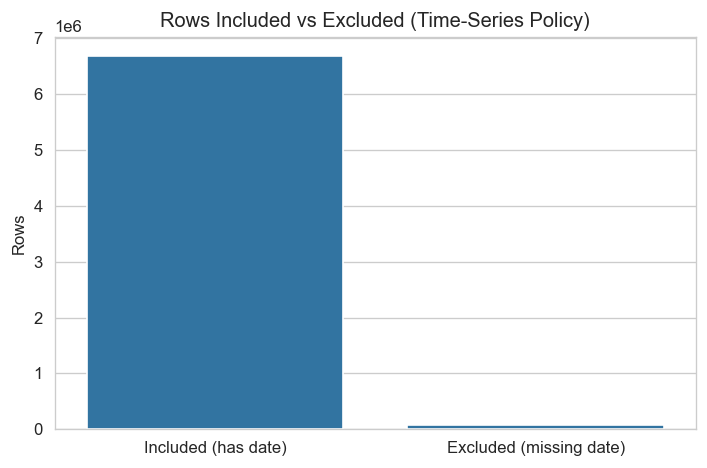

Rows included vs excluded (time-series policy)

Category Mix

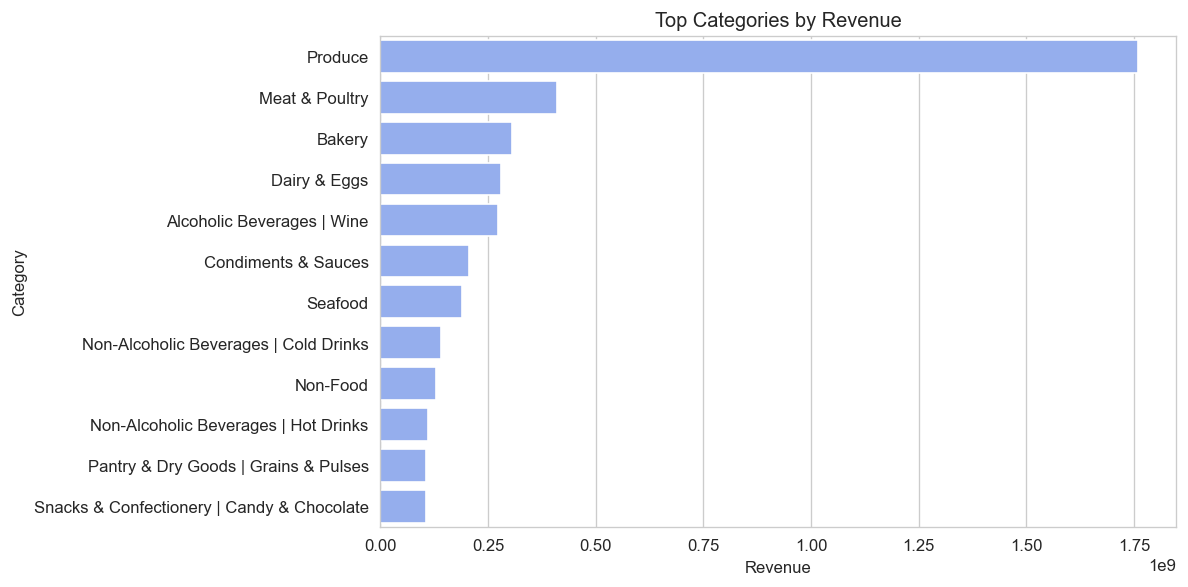

Top categories by revenue — *Revenue concentrates in a few categories (assortment & promo focus). Source: `sales_enriched.csv`.*

_{Note: Categories use the curated mapping products_with_category_v7_clean.csv (educational; may include errors).}

RFM Distributions (customer-level, NB03 input)

Feature	Median	P75
Recency (days)	1	2
Frequency (# orders)	68	73
Monetary (total spend)	42,557	63,148

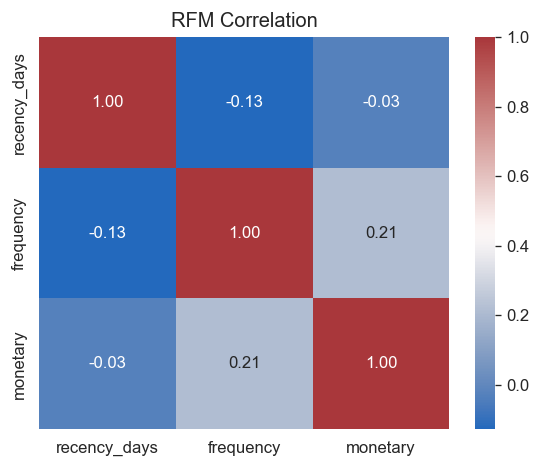

RFM correlation — *Recency is negatively related to Frequency/Monetary (recent buyers purchase/spend more). Aggregated from `sales_enriched.csv` by `SalesID`.*

Customer Concentration (Pareto)

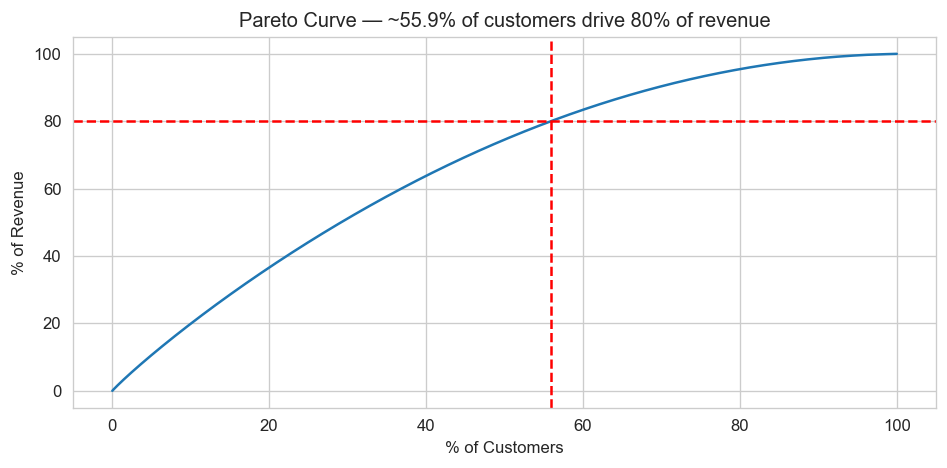

Pareto customers vs revenue — *~55.9% of customers generate 80% of revenue → segmentation is warranted. Source: `sales_enriched.csv`.*

Optional snapshots

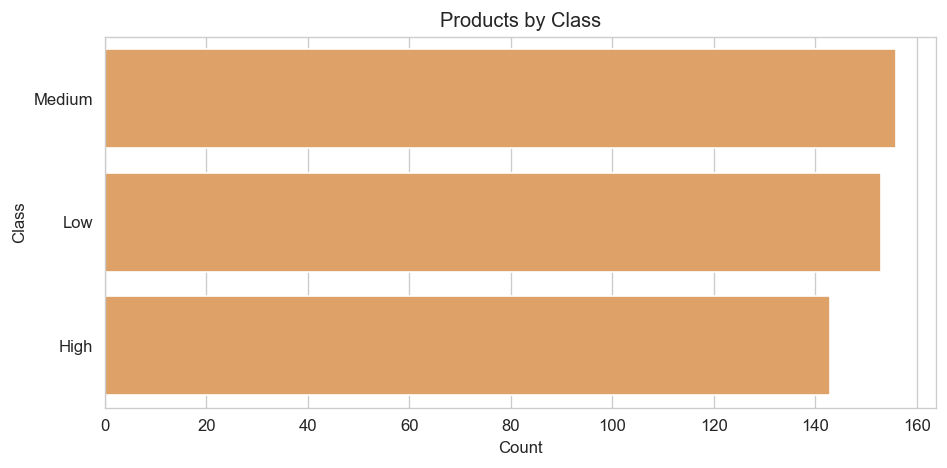

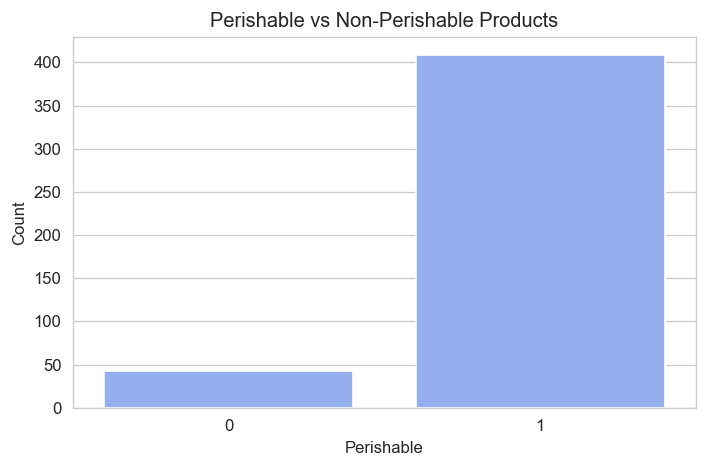

Products by class Perishable vs Non-Perishable

_{Assortment and perishables composition — inventory & freshness policy. Source: product joins → sales_enriched.csv.

Note: Category labels come from products_with_category_v7_clean.csv (educational; may include errors).}

2) Feature insights (NB03)

Customers: 98,759 | Daily rows: 129 | Transactions: 6,690,599.
Published matrices: FULL (6 features) & RFM3 (3 features). All scaled to [0,1] with 0 NaNs.
_{Source: clean/model_input/*.parquet (summaries exported to CSV for the report).}

3) Customer Segmentation (NB04)

Model quality

FULL: K = 2 Silhouette ≈ 0.3819 DB ≈ 1.0071 CH ≈ 87,885.7
RFM3: K = 2 Silhouette ≈ 0.3968 DB ≈ 0.9761 CH ≈ 85,773.5

Segment size & contribution (FULL, harmonized HV vs Mid/Low)

Segment	Share of customers	Share of revenue	Lift vs avg $/customer
High-Value	49.2%	73.7%	+49.7%
Mid/Low-Value	50.8%	26.3%	−48.1%

_{Sources: clean/tableau_feeds/cluster_profiles_full_executive.csv, clean/tableau_feeds/revenue_by_cluster_full.csv. Tableau uses customers_segments_tableau.csv for interactive filtering.}

Interpretation. The High-Value segment concentrates revenue with a similar share of customers, driven by higher Frequency/Monetary and lower Recency (more active). Priorities: retention, stockout prevention, premium bundles. The Mid/Low group is a candidate for activation and cross-sell.

Stability. Bootstrap agreement/ARI/NMI is ~0.99. GMM, Agglomerative, and DBSCAN were benchmarked; K-Means was retained for clarity and ease of use.

4) Forecasting (NB05)

Cross-validation (mean across folds)

RMSE	MAE	R²
187,973.59	158,438.55	−0.34

Note: MAPE is unstable with zero/near-zero sales days, and WAPE per fold is less interpretable. CV focuses on RMSE/MAE and R².

Holdout (14 days)

RMSE	MAE	MAPE	WAPE	R²	Uplift vs seasonal naïve
199,746.35	161,236.64	48.22%	48.0%	−0.11	+33.55%

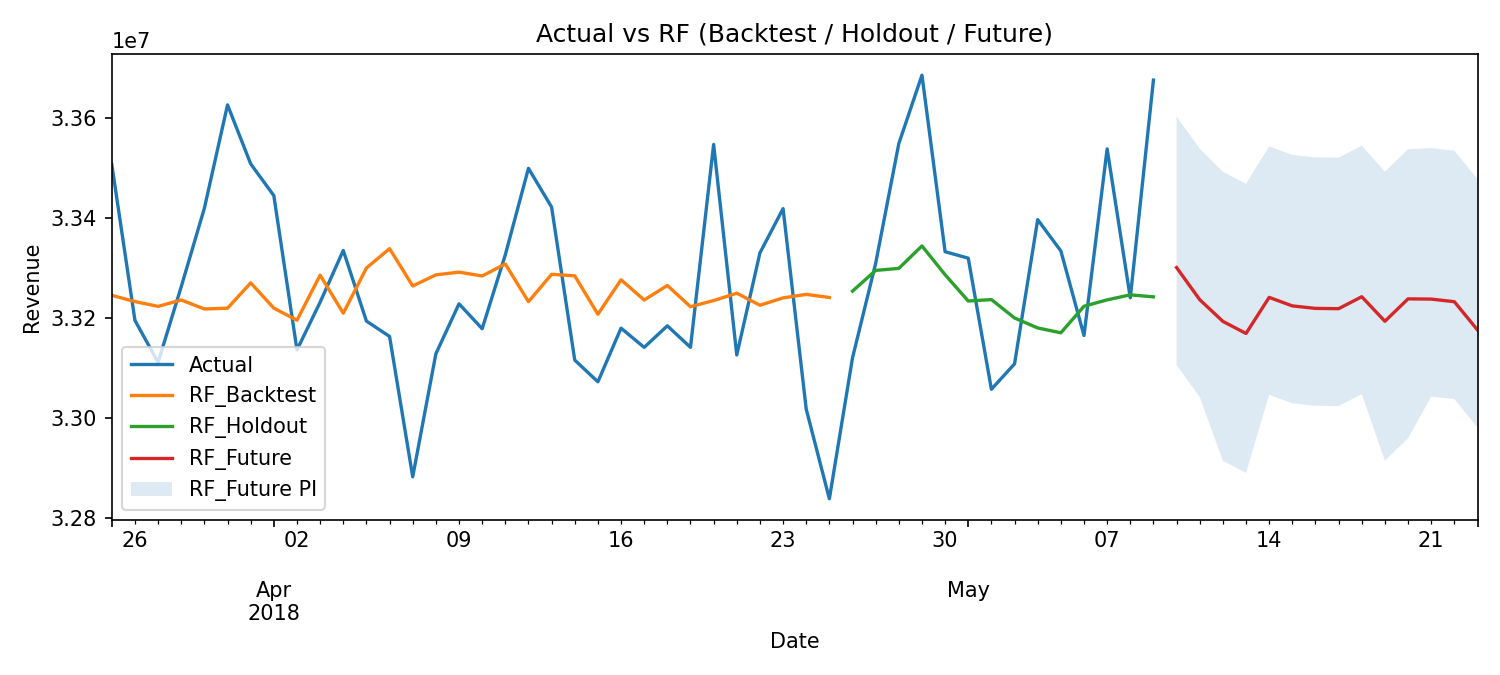

Timeline — Actual vs RF (Backtest/Holdout/Future) — *Backtest, 14-day holdout, and 14-day future forecast from the champion RF model.*

Prediction intervals (80%)
Holdout coverage ≈ 85.7%; mean/median widths tracked in clean/tableau_feeds/pi_coverage_holdout.json.

5) Dashboard (Tableau)

Public link:
🔗 Open the Tableau dashboard

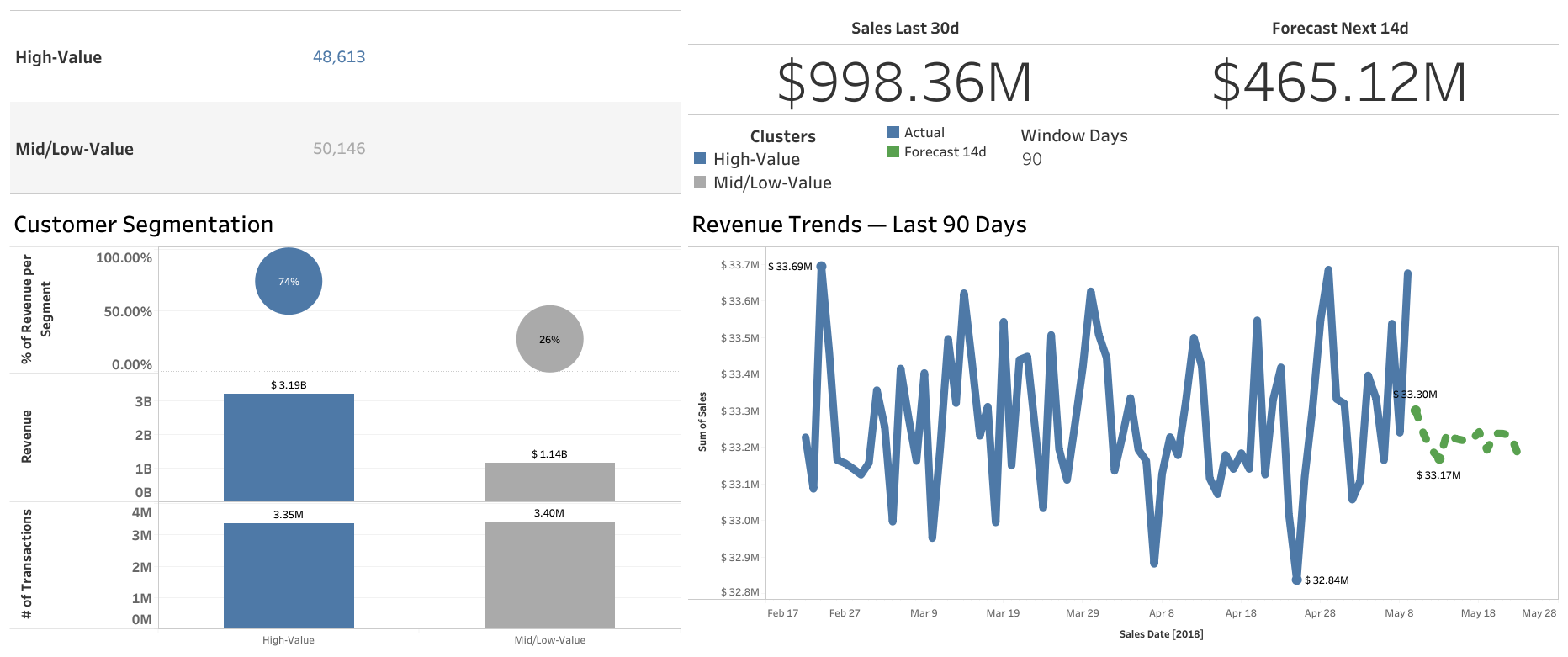

Executive view

Trend & Forecast: driven by clean/tableau_feeds/ts_forecast_feed_long.csv (honors Window Days). KPI cards (e.g., Sales Last N days, Forecast Next 14 days) are Tableau calculations over that feed.
Segmentation cards, DOW pattern, Top Categories, Perishable mix, Discount buckets: computed on full-history sales_enriched.csv joined to customers_segments_tableau.csv (these do not change with Window Days; they do respond to EDA filters).

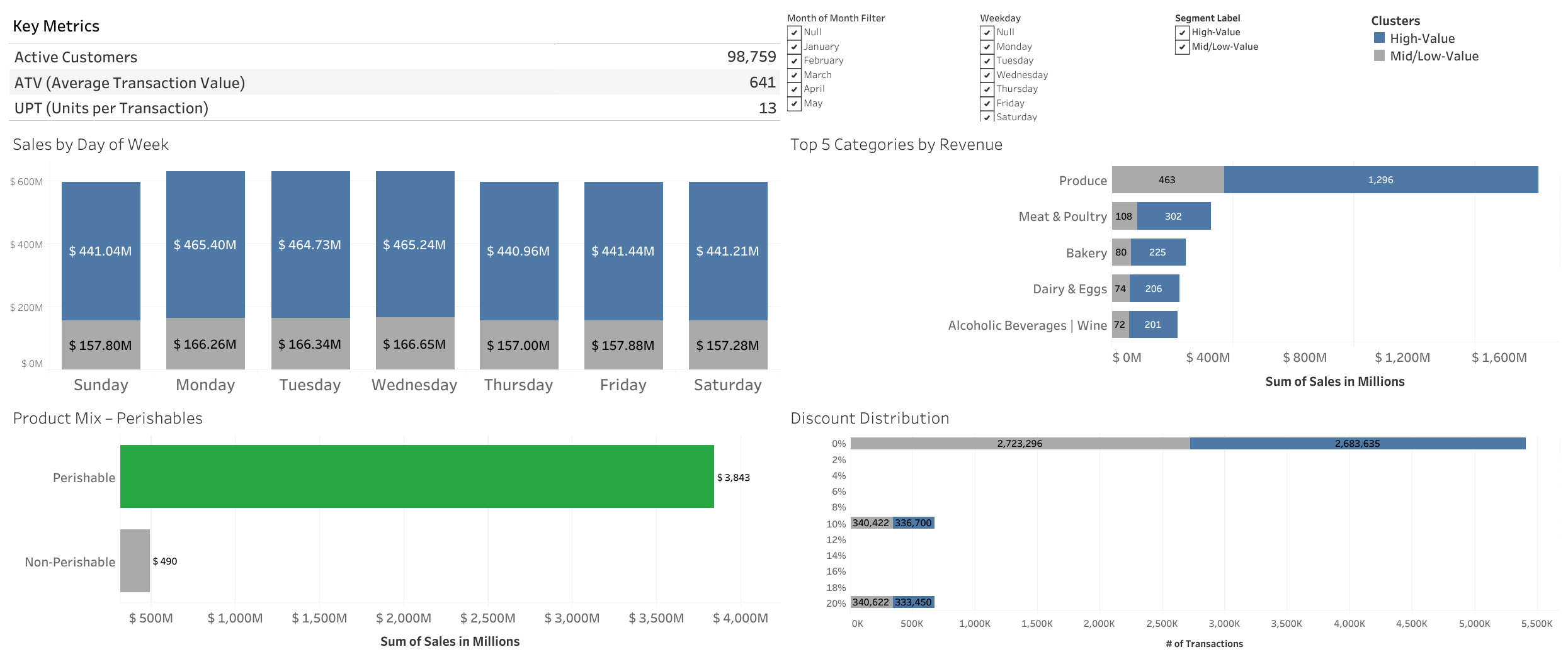

EDA Explorer view

Filters: Segment, Month (month-of-year), Weekday.
Reference metrics: Active Customers ~98,759; ATV ~641; UPT ~13 (full history).

Executive overview (trend & forecast with Window Days, plus segmentation cards) EDA Explorer (filters by Segment, Month, Weekday)

Only the trend/forecast honors Window Days. The repo includes sales_enriched_mini.csv for convenience; the published dashboard and this report were computed on the full feed.

Conclusion

The project established a reproducible pipeline from raw multi-table data (NB01) through EDA (NB02), feature engineering (NB03), customer segmentation (NB04), and a short-term forecaster (NB05). Artifacts are stored under clean/*, and the dashboard enables interactive exploration of insights.

Key takeaways

Concentration: ~55.9% of customers drive 80% of sales → segmentation is essential.
High-Value: ~49% of customers deliver ~74% of revenue → retention and stockout prevention should be prioritized.
Forecast uplift: RF improves over seasonal naïve (CV ≈ 15%, holdout ≈ 34%) with ~86% coverage for 80% PIs.

Recommendations 1) Inventory: set min/max with the forecast and PIs; prioritize perishables and High-Value demand.
2) Promotions: activate Mid/Low customers with adjacent-category bundles; monitor weekly lift.
3) Pricing: test dynamic markdowns on overstock (wide PIs).
4) Modeling next: add exogenous signals (holidays, weather), benchmark XGBoost, keep time-aware CV.
5) Monitoring: track WAPE% and PI coverage; flag drift >10% vs CV.

Authorship & data credits

Author: Juan Diego Benavides
Dataset: Grocery Sales Dataset — andrexibiza (Kaggle): https://www.kaggle.com/datasets/andrexibiza/grocery-sales-dataset/data
Used & extended for educational purposes.
